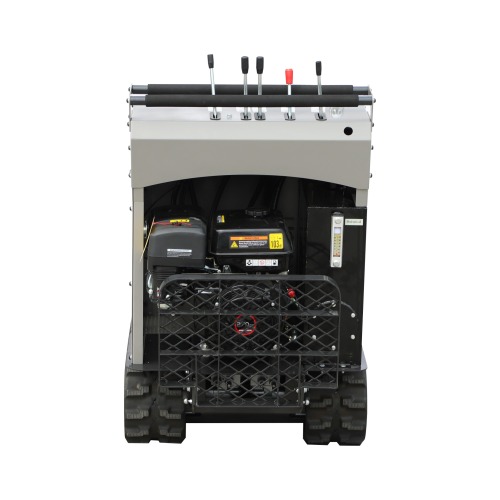

Mini Dumper SF0650

Item No.: SF0650
Multi-functional Mini Dumper with Hydraulic Transmission and Tipping

1.       Hydraulic transmission to enable steady working and stepless speed change.

2.       equipped with Loncin Motor with 270cc, 9HP, powerful enough for 500kg

3.       hydraulic tipping with 90°to save time and labor

4.       Sensitive direction change with a universal steering lever

5.       ideal for carrying bricks, sand, stones, minerals, wood, crops, fruits, fodder, etc.

Engine                                    9.0HP Gasoline
Net Weight                              340kg
Transmission                           2F+1RB
Box Dia(mm)                           1000x700x450mm
Engine                                    Loncin

Net Power                               6.8kw/3600mm
Net Torque                              17.7/2500
Bore*Stroke                            77x58mm
Displacement                          270cc
Fuel Tank Capacity                 6L
Oil Capacity                            0.95L


Standard track width              180mm(7.1in)
Standard track length             42*60mm
Loading capacity
Max Loading capacity             500kgs/661 lb
Dimension                              1700x740x2560 mm
Container Container
20GP Capacity     10PCS
40HQ Capacity     42PCS
